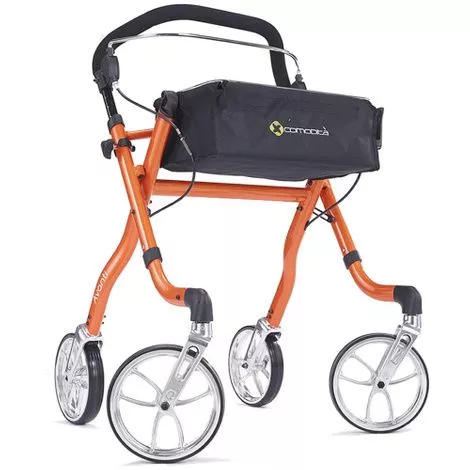

Comodita Avanti Rolling Walker

Comodita Avanti Rolling Walker Features

• Removable tray and cup holder help to make it even more versatile and convenient
• The unique S design of the Avanti allows for extra room for walking between the rear wheels to help prevent tripping
• Tray can be used as a support table
• Height adjustable comfortable foam handle
• Removable, washable nylon bag to transport personal items
• Removable plastic tray to transport small items
• Brake bar activates both rear wheel brakes
• Extra space between back wheels to help avoid tripping
• Easy to operate in narrow and small spaces
• Handle finished with soft foam rubber for added comfort
• Large 8″ wheels help overcome small obstacles
• Hand brake locking system for parking
• Weight capacity: 300 lb.
• Recommended user height: 4;8 “to 5;11”
• Size of nylon bag: 15 “X 10” X 6 ½ “
• Weight capacity for tray and nylon bag: 20 lb
• Size of tray: 15 ½ “X 10”

What to buy with Comodita Rollators

• Comodita Pisa Cup Holder
• Comodita Verona Cushion
• Safepath EZ Edge Transition Rubber Threshold Ramp

How to assemble Avanti Rolling Walker?

1. Insert the front wheels into the frame by pushing the frame of the front wheel into the main frame of the walker. The metal buttons will lock at the designated position.
2. Open the main frame of the walker by pushing apart the front and back wheels supports
3. Remove the plastic knobs that are located on both sides of the main frame of the walker
4. Insert the handle bar into the top side of the frame. Make sure you insert both sides simultaneously; otherwise the handle bar will not slide into the frame smoothly. Adjust the height of the handle bar to a point you feel comfortable operating the walker. Insert the metal screw into the frame to lock the handle at the desired height. Make sure the height of the handle is the some on both sides by matching the numbers on the handle bar.
5. Lock the metal support of the plastic tray into the main frame
6. Insert the plastic tray into the metal support
7. Insert the cup holder into the cup holder support

How to operate Comodita Avanti Rollator?

• To lock and unlock brakes –
  1. Push the brake bar down until you hear a click
  2. Pull the brake bar up to unlock the brakes
• To transport the walker –
  1. Remove the plastic tray
  2. Unlock the tray support from the frame
  3. Move the front wheels toward the back wheels. Comodita Avanti is designed to stand alone when closed for transportation.
• To adjust the brakes: To adjust the sensitivity of the break:
  1. Turn the locking nut clockwise to increase brake sensitivity
  2. Turn the locking nut counter-clockwise to reduce brake sensitivity

Safety Instructions for Avanti Walker

• Do not exceed maximum weight capacity
• Inspect brakes before each use
• All wheels must be in contact with the floor or ground at all times
• Do not use in escalators, stairs, moving sidewalks, or uneven surfaces
• Recommended user’s height from 4’8″ to 6’2″.
