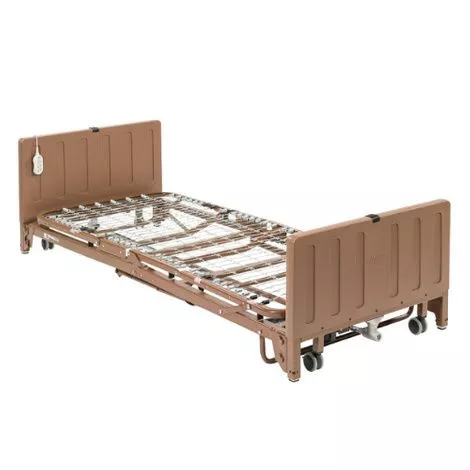

Features of Drive Medical Full Electric Low Bed
- Patient Weight Capacity 350 lbs. (158kg). Total Weight Capacity 450 lbs. (204kg).
- The motor is UL Approved; the Bed is manufactured in ISO9001 & ISO13485 facility
- Half rails and full rails are available in packages (PKG) or sold separately
- Labels and color-coded springs help ensure the accurate installation of side rails for patient safety
- The high-performance workhorse muscle of the 3-motor power plant is an industry-standard
- The headboard is taller than the footboard to blend with home decor
- The quiet, convenient, fully electric operation provides smooth position change with easy-to-use
- Hand Pendant control of Head/Foot Section positioning and overall height of the bed frame for maximum comfort and versatility for the patient or caregiver
- Height adjustment and Head/Foot deck motors come pre-installed on the foot section no assembly required
- In the event of power failure, top-mounted Hi/Lo crank accessibility and manual crank motor override sleep surface adjustments
- Easy to transport and set up, the Bed ships in two cartons
- Channel frame construction provides superior strength and reduced weight
- Reinforced frame resists twisting and bending
- Long lasting Zinc-coated spring deck for Patient comfort
- Heavy-duty bed ends with durable HD Polyethylene Molded Bed End covers are attractive, easy-to-maintain
Drive Electric Bed User Guides
- Drive Full Electric Bed Parts
- Drive Full Electric Low Bed User Manual
What to buy with Hospital Beds
- Executive Split-Top Overbed Table
- Sammons Preston Magnetic Chair Alarm
- Stander EZ Adjustable Bed Rail
How to clean and Maintain Drive Full Electric Bed?
The following maintenance and cleaning procedures are conducted between users
- Electronics
- Check all controls to make sure all functions work properly
- Foot control
- Head control
- Hi/Lo
- Check all cables for damaged or frayed wires.
- Power cord
- Pendant cord
- Check to make sure all plugs are fully inserted or attached.
- Check all controls to make sure all functions work properly
- Bed Frame & Sleeping Surface
- Visually check all welds.
- Head section
- Foot section
- Main Frame
- Check joints between sleeping surface sections for loose fasteners.
- Visually check all welds.
- Cleaning
- If possible, remove the patient/resident before cleaning the bed.
- Before cleaning, unplug the power supply cord.
- Ensure all electrical parts (motors, control boxes, wires, and pendant) are not broken.
- Ensure that NO liquids enter electrical components.
- The metal parts of the bed are covered with a powder coating. Clean all coated parts with mild detergent and warm water.
- Raise the head and foot sections of the bed to remove dust from the frame.
- Remove the mattress and clean the mattress deck.
- Remove all gross/solid contaminants, then wash and sanitize all components. DO NOT submerge the bed frame or electrical components.
- Solvents, alcohol, bleach, caustic agents, high acid or alkaline solutions, or petroleum-based products should not be used on the bed.
- Use standard water pressure. DO NOT power wash or steam clean any parts.
- Rinse completely with water (Maximum temperature 110o F or 43o C). Do not rinse with cold water.
- Ensure all parts are dry before using or storing.
- Lubrication & Mechanical
- Lightly grease all actuator screw threads with white lithium grease
- Lubricate all caster roller and swivel bearings with light machine oil
- Check all bolts and tighten them as needed
