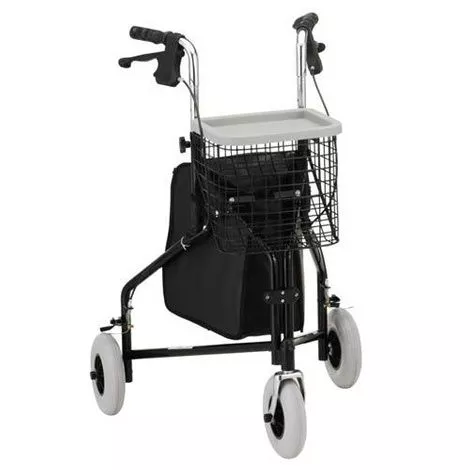

Nova Medical Traveler 3-Wheel Rolling Walker

Nova Medical Three Wheel Rolling Walker Features

• Comes with a removable pouch, tray and basket
• Large baskets and pouch provide lots of storage facility
• This 3 Wheel Rollator Walker has maneuverable design with 8” wheels
• Locking hand brakes
• Lightweight aluminiumframe
• 3 wheel folding walker

What to buy with Nova Three Wheel Walker

• Safepath EZ Edge Transition Rubber Threshold Ramp
• Nova Medical Designer Aluminum Folding Cane
• PVI Portable Multifold Ramp

How to assemble Nova 3 Wheel Rollator Walker?

1. Carefully remove the walker from the plastic bag and place on the floor
2. Cut the 4 plastic ties that secure the handles to the frame and remove all foam protective pieces
3. Open the walker up by grabbing the frame above the rear wheels and pulling outward so that the walker forms a triangle
4. Push down on the black hinge joint with caution markings until the frame is in the full open and locked position
5. Remove the rubber protection plugs from the top of the frame and insert the handles into the frame
6. Adjust the handles to your desired user height
7. Once you have determined the correct height. Insert the screw into the hex screw cut out on the inside of the frame and through the handle. Make sure that the hex screw head fits into the hex cut-out on
8. Place the contoured washer over the tip of the screw and hand tighten the black star adjustment knob until it is flush with the frame

How to attach the bag to Nova 3 Wheel Walker?

• Place the bag between the legs of the walker so that the narrow-closed end is facing forward.
• Place the left side top flap over the frame just above the folding hinge support piece and snap both buttons in place. Repeat this for the upper right top flap.
• Place the lower left flap around the rear frame tube and snap both buttons in place. Repeat this step for the right-side lower flap

How to assemble the basket and tray of Nova 3 Wheel Rolling Walker?

• Position the basket between the cables and above the hooks located on the frame in front of the handles
• Slowly lower the basket until the hooks engage into the corner squares on the diagonal slope. The folding hinge piece will fit inside of the large cut out on the diagonal slope if the basket is placed correctly
• Remove the tray from the protective box and place on top of the basket
• Your walker is now completely assembled.

How to Open Three Wheel Rolling Walker?

• Push outward on the frame or handles
• Push down on the black hinge piece with caution markings until the frame is in the fully open and locked position

Folding the Three Wheeled Walker

• Remove the basket if attached.
• Slowly pull back on the black hinge piece with caution markings until the hinges are no longer in a straight position.
• Push inward on the handles until the walker is in the folded position.

How to walk using Nova 3 Wheel Rolling Walker?

• Roll your walker slowly forward so that the rear wheels are a few inches ahead of your body.
• Step forward and place one foot in line with the rear wheels
• Maintaining a steady roll forward, place your other foot in line with the rear wheels.
• Determine a pace that is comfortable and allows you to place each step in line with the rear wheels.
